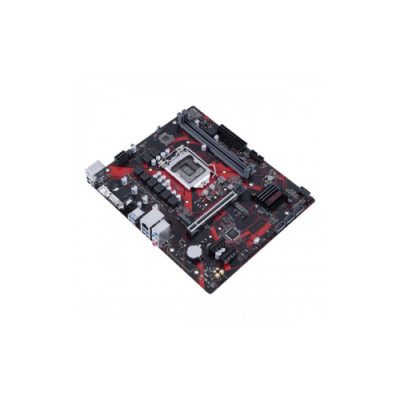

ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard

ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard
Save: 740৳
ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard

Key Features

  • LGA 1200 ,10th-gen & 11th-Gen Intel Core Processors
  • Dual M.2 slots (up to 64 Gbps)
  • Luminous Anti-moisture Coating
  • 5X Protection III
  • Offer Price: 10,650৳
  • Price: 11,390৳
  • Stock: In Stock
  • Brand: Asus
  • Model: Expedition EX-B560M-V5
  • SKU: 10256
10,650৳
11,390৳
Ex Tax: 10,650৳
Main Features
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel B460
Form Factor mATX Form Factor
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and
Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost
Max Technology 3.0
Supports CPU up to 125 W
Audio/Video Features
Audio Output Realtek ALC887 7.1-Channel High Definition Audio CODEC
Expansion Slots
M.2 Socket M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Gen processors support PCIe 4.0 x4 mode,
this slot will be disabled for other CPUs

Intel B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
PCI Intel 10th Gen Processors
1 x PCIe 3.0/2.0 x16
Intel B460 Chipset
2 x PCIe 3.0 x1
Graphics Specifications
Graphics 1 x D-Sub
1 x HDMI 1.4 / 2.0***
** Only Intel 11th Gen processors support HDMI 2.0 with max.
resolution of 4K@60Hz, others will only support HDMI 1.4
with max. resolution of 4K@30Hz. Please refer to
www.intel.com for any updates.
Max Shared Memory Shared memory default 2GB. Max Shared memory supports up to 16GB
Memory Specifications
Maximum Size 64 GB
Slot 4 x DDR4 DIMM
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/
3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/
2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory*
Supports Intel Extreme Memory Profile (XMP)
*10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/
2400/ 2133 natively, others will run at the maximum transfer
rate of DDR4 2666MHz.
* 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists), and memory frequency support depends on the CPU types.
Type Dual Channel Memory Architecture
Connectivity
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Premium Japanese audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
D-Sub 1 x D-Sub
Display Port 1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz
HDMI 1 x HDMI 1.4 / 2.0
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices
support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
LAN Ports 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode,
this slot will be disabled for other CPUs

Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
USB Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features ASUS 5X Protection III :
- ASUS LANGuard: Protects against LAN surges, lightning strikes
and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting
power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot Core+ - Prevent graphics card damage
- ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Seperated layers for left and right tracks to ensures both
channels delivering the consistent and equal quality
- Premium Japanese audio capacitors: Provide warm,
natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested

ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard

The ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard is a mATX form factor motherboard that supports Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It has a chipset of Intel B460 and supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The motherboard has a BIOS of 128 Mb Flash ROM, UEFI AMI BIOS.

The motherboard supports CPU up to 125 W and has a Realtek ALC887 7.1-Channel High Definition Audio CODEC for audio output. For graphics, it has 1 x D-Sub and 1 x HDMI 1.4 / 2.0 ports. Only Intel 11th Gen processors support HDMI 2.0 with max resolution of 4K@60Hz, while others support HDMI 1.4 with max resolution of 4K@30Hz. The motherboard has a shared memory default of 2GB and supports up to 16GB.

In terms of expansion slots, it has 1 x PCIe 3.0/2.0 x16, 2 x PCIe 3.0 x1, 1 x M.2_1 slot (Key M) for Intel 11th Gen processors that support PCIe 4.0 x4 mode, and 1 x M.2_2 slot (Key M) for SATA modes and PCIe 3.0 x4. The motherboard has 4 x DDR4 DIMM slots that support up to 64GB of memory, and supports Intel Extreme Memory Profile (XMP).

For connectivity, the ASUS Expedition EX-B560M-V5 motherboard has a Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC and supports jack-detection, multi-streaming, and front panel jack-retasking. It also has 1 x D-Sub, 1 x DisplayPort 1.4, 1 x HDMI 1.4 / 2.0, 1 x CPU Fan connector, 1 x Chassis Fan connector, and 2 x USB 2.0 connector. It also supports LAN connectivity with its 1 x Realtek 1Gb Ethernet port and ASUS LANGuard. It supports 2 x M.2 slots and 4 x SATA 6Gb/s ports for storage, and has 4 x USB 3.2 Gen 1 ports (4 x Type-A) and 2 x USB 2.0 ports (2 x Type-A) for USB connectivity.

Features:

Here are some features of the ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard-

  • Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
  • Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
  • Non-stop gaming: ASUS Beyond VR ready and Epic audio
  • Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more

Overall, the ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard is a budget-friendly option that provides excellent features for building a desktop PC with high performance Processors.
