Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Audio Jack
5 x Audio jacks
Display Port
1 x DisplayPort
DVI
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
HDMI
1 x HDMI 1.4b
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
LAN Ports
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)

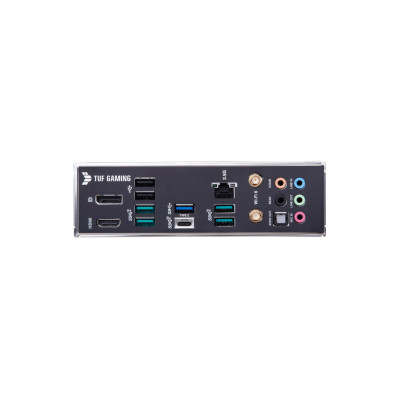

USB
Rear USB:Total 8 ports
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connector

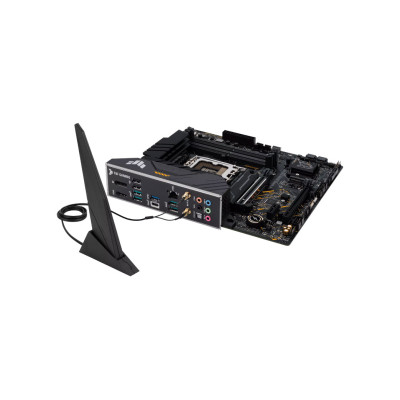

Wireless Communication Module
Intel Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Warranty Information
Manufacturing Warranty
03 Years
Others
Bundled Software
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

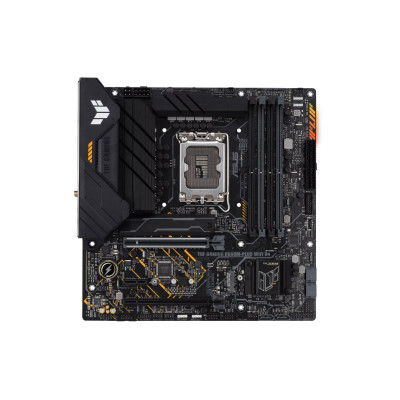

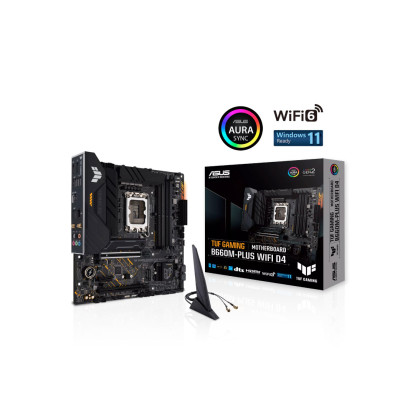

ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
The ASUS TUF Gaming B660M-PLUS Wi-Fi D4 12th Gen mATX Motherboard is perfect for a powerful gaming experience. This motherboard features a Wireless Communication Module and Intel Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax) for a smooth connection. It also has Bluetooth v5.2, a 128 Mb Flash ROM, UEFI AMI BIOS, an Intel B660 Chipset, Intel Socket LGA1700, and supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. It has 3 M.2 slots, a 4xPCIe 5.0 x16 slot, 4xSATA 6Gb/s ports, 1xDisplayPort and 1xHDMI port, a Realtek 7.1 Surround Sound High Definition Audio CODEC, 5xAudio jacks, 1xDVI-D port, 1xUSB 3.2 Gen 1 connector, 3 Addressable Gen 2 headers, and an AURA RGB header. Plus, it has plenty of power and protection with 1x24-pin Main Power connector, 1x8-pin+12V Power connector, 1x4-pin+12V Power connector, a TUF LANGuard, and a SPI TPM header. Get the most out of your games with the ASUS TUF Gaming B660M-Plus Wi-Fi D4 12th Gen mATX Motherboard.
Features:
The ASUS TUF GAMING B660M-PLUS WIFI D4 is a micro-ATX motherboard designed for use with 12th generation Intel processors. Here are some of its key features:
Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Overall, the ASUS TUF GAMING B660M-PLUS WIFI D4 is a feature-rich motherboard with a focus on durability and reliability. It is a good choice for gamers and other demanding users who want a micro-ATX motherboard that can handle high-performance components.
What is the price of ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard in BD 2023?
The latest price of ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard in Bangladesh (BD) is 24,000৳ . You can buy the ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
