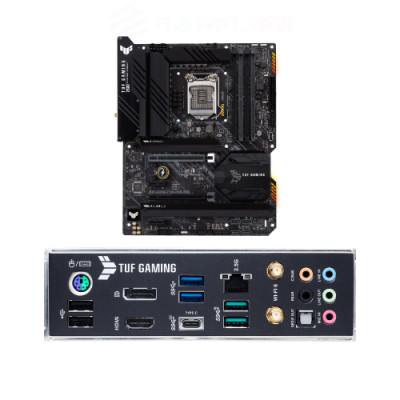

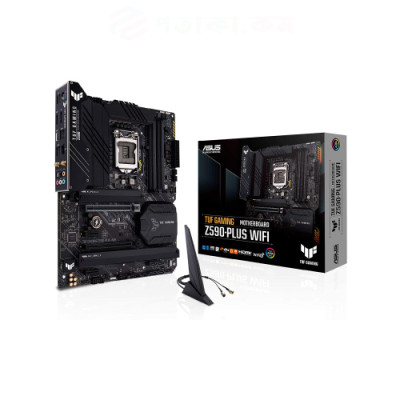

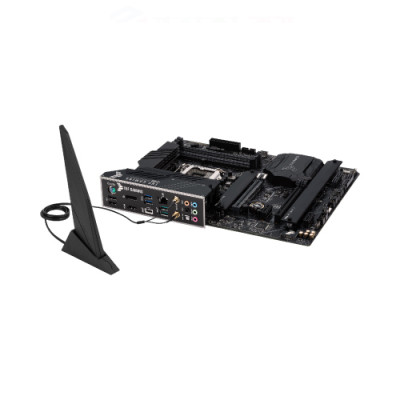

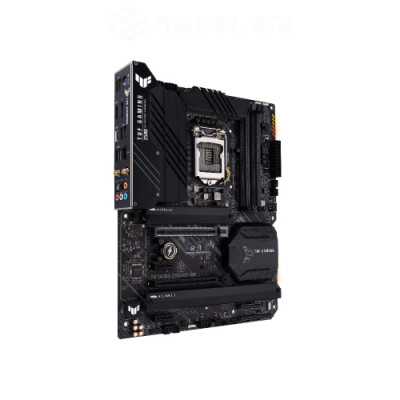

Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard

Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Save: 1810৳
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard
Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard

Key Features

  • Ready for 10th and 11th Intel Core Processors
  • Comprehensive cooling
  • Enhanced power solution
  • Two-way AI Noise Cancelation
  • Offer Price: 24,500৳
  • Price: 26,310৳
  • Stock: In Stock
  • Brand: Asus
  • Model: Asus TUF Gaming Z590-Plus Wi-Fi
  • SKU: 10097
24,500৳
26,310৳
Ex Tax: 24,500৳
Main Features
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Chipset Intel Z590 Chipset
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen
Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost
Max Technology 3.0
Expansion Slots
M.2 Socket M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will
be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe
3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4
& SATA modes)
PCI Intel 11th & 10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Graphics Specifications
Graphics 1x DisplayPort 1.4
1x HDMITM 2.0
Max Shared Memory Shared memory default 2GB. Max Shared memory supports up to 16GB
Memory Specifications
Maximum Size 128GB
Slot 4 x DIMM
Supported Memory 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/
4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/
3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/
3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC,
Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Type DDR4
Connectivity
Audio "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio
CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
D-Sub 1 x D-Sub Port
Display Port 1x DisplayPort 1.4
DVI 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
HDMI 1x HDMITM 2.0
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1
ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
LAN Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will
be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe
3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 &
SATA modes)
6 x SATA 6Gb/s ports
TPM (Trusted Platform Module ) N/A
USB 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- TUF LANGuard
- Overvoltage Protection
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device
[yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Asus TUF Gaming Z590-Plus Wi-Fi ATX Gaming Motherboard

The Asus TUF Gaming Z590-Plus Wi-Fi Intel Aura RGB 10th & 11th Gen ATX Gaming Motherboard offers top-of-the-line performance and features. Featuring a 192 (128+64) Mb Flash ROM UEFI AMI BIOS and an Intel Z590 Chipset, this ATX Form Factor board (30.5 cm x 24.4 cm) offers support for Intel Socket LGA1200 11th Gen Intel Core & 10th Gen Intel Core processors, Pentium Gold, and Celeron processors. It also supports Intel 14 nm CPU and Intel Turbo Boost Technology 2.0 & 3.0. Expansion slots include M.2 sockets (1 supports PCIe 4.0 x4 mode - only Intel 11th processors; 2 support PCIe 3.0 x4 & SATA modes) and 3 PCI slots (1 PCIe x16, 2 PCIe x1). Graphics capabilities include 1 DisplayPort 1.4, 1 HDMI, 1 D-Sub and 1 DVI-D. Connectivity features include Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC (24-Bit/192 kHz playback) with audio shielding and rear optical S/PDIF out port. The Max Shared Memory is 2GB but can support up to 16GB. USB connectivity includes 1 USB 3.2 Gen 1 connector, 1 USB 3.2 Gen 1 header, 2 USB 2.0 headers, 1 USB 3.2 Gen 2x2 port, 2 USB 3.2 Gen 2 ports, 2 USB 2.0 ports. Storage includes 3 M.2 slots, 6 SATA 6Gb/s ports and 1 24-pin Main Power connector. Special features include TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY and AURA Sync. Warranty is 03 years.

Features:

The Asus TUF Gaming Z590-Plus Wi-Fi is a high-end motherboard designed for gaming enthusiasts. Here are some of the key features of this motherboard-

  • Ready for 10th and 11th Intel Core Processors
  • Comprehensive cooling
  • Enhanced power solution
  • Two-way AI Noise Cancelation
  • Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors
  • Enhanced Power Solution: 14+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
  • Comprehensive Cooling : VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Ultra Fast Gaming Networking : Intel WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology
  • Fastest Connectivity: Triple M.2/NVMe SSD, Front panel USB 3.2 Gen 1 Type-C header and Thunderbolt 4 header
  • Next-gen connectivity: PCIe® 4.0, USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
  • Made for online gaming: Intel® WiFi 6, Intel® 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

Overall, the Asus TUF Gaming Z590-Plus Wi-Fi is a powerful and versatile motherboard that offers a wide range of features for gamers and power users. Its robust construction and high-end components make it a reliable choice for building a high-performance gaming PC.
