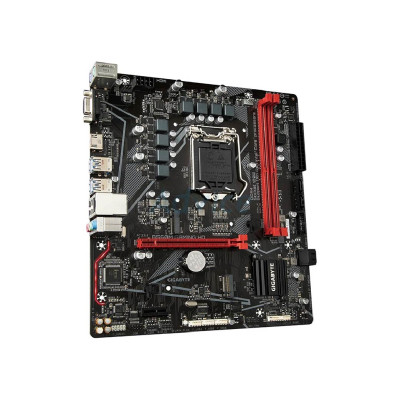

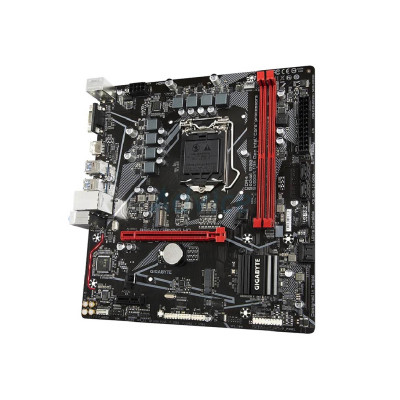

Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Save: 721৳ Out Of Stock
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard

Key Features

  • Supports 11th and 10th Gen Intel Core Processors
  • Direct 6+2 Phases Digital VRM
  • Dual Ultra-Fast NVMe PCIe 4.0
  • Exclusive 8118 Gaming LAN
  • Offer Price: 9,699৳
  • Price: 10,420৳
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: B560M GAMING HD
  • SKU: 10179
Based on 3 reviews. - Write a review
9,699৳
10,420৳
Ex Tax: 9,699৳
Add to Cart
Buy Now
WishList Compare
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel B560 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors /
Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors /
Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium
processors / Intel Celeron processors
Expansion Slots
M.2 Socket CPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2
SSD support) (M2P_CPU)(Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and
PCIe 3.0 x4/x2 SSD support) (M2A_SB)
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
(Note) 1 x PCI Express x1 slot (PCIEX1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Graphics Specifications
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200
@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Max Shared Memory 512MB
Memory Specifications
Maximum Size 64 GB (32 GB single DIMM capacity)
Slot 2 x DIMM
Supported Memory 11th Generation Intel Core i9/ i7/ i5 processors:
Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz
memory modules
10th Generation Intel Core i9/ i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16
memory modules
Support for Extreme Memory Profile (XMP) memory modules
Type Dual channel memory architecture
Connectivity
Audio 6 x audio jacks
D-Sub 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
Display Port 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
LAN Ports Realtek GbE LAN chip (1 Gbit/ 100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2
SSD support) (M2P_CPU)(Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and
PCIe 3.0 x4/x2 SSD support) (M2A_SB)
4 x SATA 6Gb/s connectors
Intel Optane Memory Ready
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/
GC-TPM2.0 SPI 2.0 module only)
USB Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports
available through the internal USB header)
Chipset + USB 2.0 Hub:
8 x USB 2.0/ 1.1 ports (2 ports on the back panel,
6 ports available through the internal USB headers)
Warranty Information
Manufacturing Warranty 03 Years
Others
Bundled Software Support for Windows 10 64-bit
Special Features Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard

The Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard is perfect for achieving ultra-fast computing performance. It offers excellent expandability, maximum stability and more. With 1 x 256 Mbit flash and use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, you can be sure that this motherboard runs smoothly and reliably. It also has Intel B560 Express Chipset and Micro ATX Form Factor; 24.4cm x 22.5cm for maximum compatibility and efficiency. Not to mention, it is compatible with 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors and 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors for maximum flexibility. Furthermore, the M.2 Socket includes a CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) and 1 x PCI Express x16 slot, running at x16 (PCIEX16) for excellent graphics performance. Experience all that with its 6 x audio jacks, 1 x D-Sub port, 1 x HDMI port, integrated Graphics Processor-Intel® HD Graphics support, Max Shared Memory of 512MB, 1 x DisplayPort, 6 x USB 3.2 Gen 1 ports, 8 x USB 2.0/1.1 ports, 2 x DIMM and maximum size of 64 GB (32 GB single DIMM capacity). With Realtek GbE LAN chip (1 Gbit/ 100 Mbit) for optimum connectivity and support for Windows 10 64-bit and bundled software, this motherboard offers all the features for your computer needs.

Features:

The Gigabyte B560M GAMING HD is a micro-ATX motherboard that comes with the following features:

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overall, the Gigabyte B560M GAMING HD is a solid choice for gamers and enthusiasts looking for a micro-ATX motherboard that supports the latest Intel processors and provides plenty of expansion options.
