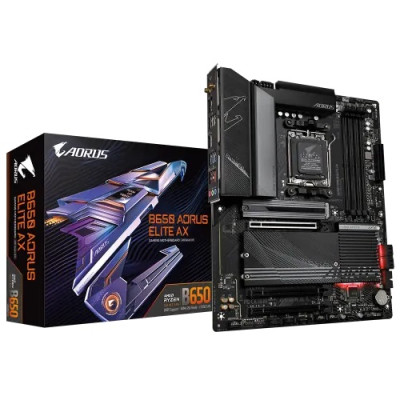

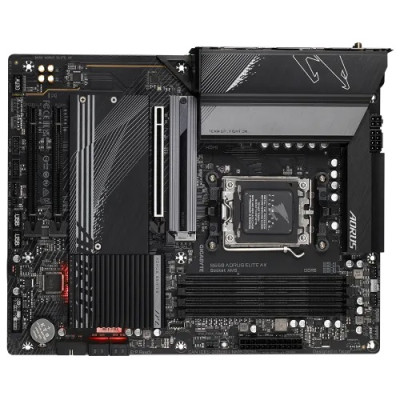

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
Save: 3500৳
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

Key Features

  • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6666(OC)
  • Graphics Output: 1x Display Port, 1 x HDMI
  • Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E
  • Offer Price: 33,500৳
  • Price: 37,000৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B650 AORUS ELITE AX
  • SKU: 11791
Based on 0 reviews. - Write a review
33,500৳
37,000৳
Ex Tax: 33,500৳
Add to Cart
Buy Now
WishList Compare
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B650
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Type DDR5
Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Memory Specifications
Maximum Size 128GB
Slot 4 DIMMs
Supported Memory 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Connectivity
Audio Realtek Audio CODECbr> High Definition Audio
2/4/5.1/7.1-channel
Display Port 1 x DisplayPorts
HDMI 1 x HDMI port,
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
LAN Ports Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

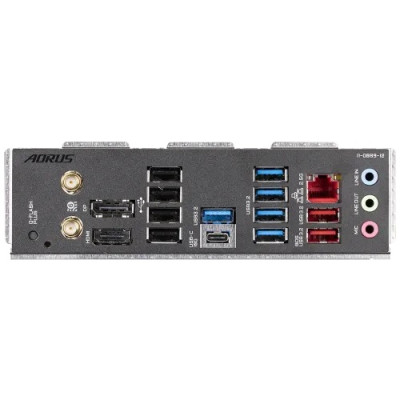

USB CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back pane
Connector
Wireless Communication Module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Warranty Information
Manufacturing Warranty 03 years
Others
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA-DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Features:

Here are some of the key features

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance： Twin 12*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard ： To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
