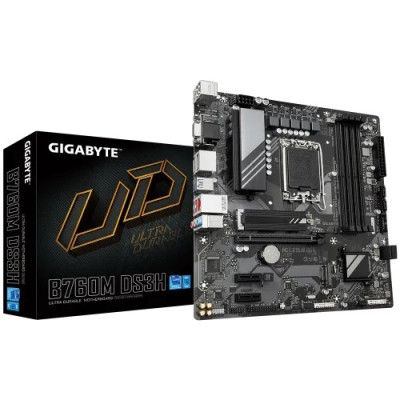

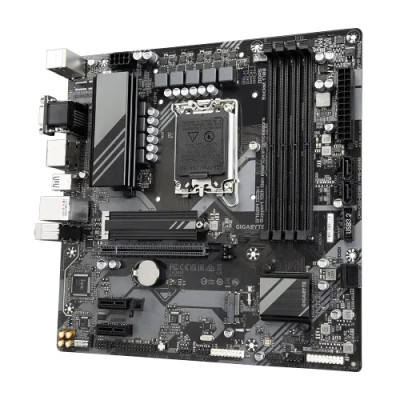

GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard

GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
Save: 1750৳
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard
GIGABYTE B760M DS3H DDR5 13th and 12th Gen Intel mATX Motherboard

Key Features

  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
  • Graphics Output: 1x HDMI, 2x DisplayPort, 1 x D-Sub
  • Features: Realtek 2.5GbE LAN chip
  • Offer Price: 16,950৳
  • Price: 18,700৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B760M DS3H DDR5
  • SKU: 843607
Based on 0 reviews. - Write a review
16,950৳
18,700৳
Ex Tax: 16,950৳
Add to Cart
Buy Now
WishList Compare
Basic Information
Raid Controller RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Main Features
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel B760 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Audio/Video Features
Audio Output Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Graphics Specifications
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Support for up to quad-display at the same time
Memory Specifications
Maximum Size up to 192 GB (48 GB single DIMM capacity) of system memory
Slot 4
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Type DDR5
Connectivity
Audio 3 x audio jacks
D-Sub 1x D-Sub
Display Port 2x DisplayPort
HDMI 1x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Ports Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warranty 3 years
Others
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

GIGABYTE B760M DS3H 13th and 12th Gen mATX Motherboard Price in BD

The GIGABYTE B760M DS3H stands out as a high-performance mATX motherboard tailored for Intel's LGA 1700 socket, accommodating both 13th and 12th Gen Series Processors. Its exceptional performance is driven by a cutting-edge Hybrid 6+2+1 Phases Digital VRM Solution, ensuring stability and efficiency in power delivery.

Facilitating an advanced memory experience, this motherboard boasts Dual Channel DDR5 with 4 DIMMs, supporting XMP Memory Modules for enhanced memory capabilities. It's a platform that recognizes the demands of modern computing, especially for users who require robust multitasking and memory-intensive applications.

In terms of storage, the GIGABYTE B760M DS3H incorporates next-generation technology with 2 PCIe 4.0 x4 M.2 Connectors. These connectors not only offer rapid data transfer speeds but also come equipped with an M.2 Thermal Guard to preserve optimal performance for M.2 SSDs, showcasing a commitment to both speed and reliability.

The motherboard's design emphasizes user-friendly features, such as the EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design. This design streamlines the installation and removal of PCIe components, enhancing user convenience.

Networking capabilities are robust, with Fast 2.5GbE LAN providing reliable and high-speed network connectivity. This is particularly beneficial for users who demand seamless online experiences, whether for gaming, streaming, or professional applications.

Connectivity is further extended with Rear USB-C 10Gb/s, DP, and HDMI ports, ensuring versatility for various peripherals and display options. This addresses the diverse needs of users who require a range of devices to be connected simultaneously.

Efficient cooling is assured through the implementation of Smart Fan 6 technology, featuring multiple temperature sensors and hybrid fan headers with FAN STOP. This not only helps maintain optimal operating temperatures but also contributes to a quieter computing environment.

The Q-Flash Plus feature adds a layer of convenience for users who want hassle-free BIOS updates. This can be achieved without the need to install the CPU, memory, and graphics card, streamlining the updating process and minimizing downtime.
