Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Expansion Slots
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
* Supported by 11th Generation processors only.
1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory Specifications
Slot
2 x DDR4 DIMM
Supported Memory
11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Connectivity
Audio
3 x audio jacks
D-Sub
1 x D-Sub port
HDMI
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
LAN Ports
Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Warranty Information
Manufacturing Warranty
3 years
Others
Bundled Software
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Special Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

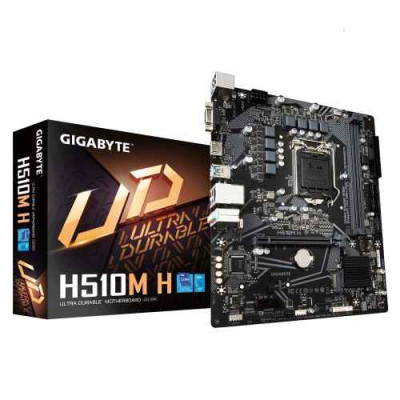

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard
This Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard is the perfect solution for your home or office. It has a comprehensive BIOS as well as a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Supported CPUs include 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors as well as10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors with a maximum of 4 MB Intel Smart Cache. Also, the Dual channel memory architecture allows for up to 64 GB of DDR4 DIMM system memory. The integrated graphics processor supports 1 x D-Sub port, 1 x HDMI port and more, with a maximum resolution of 4096x2160@30 Hz. Additionally, there is an M.2 socket, 4 x SATA 6Gb/s connectors, 1 x PCI Express x16 slot and 1 x PCI Express x1 slot as well. For connectivity, this motherboard offers 3 x audio jacks, 1 x D-Sub port, 1 x HDMI port and more. Moreover, there is a Realtek GbE LAN chip and 4 x USB 3.2 Gen 1 ports with 6 x USB 2.0/1.1 ports. Finally, the system includes Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility, @BIOS, Ambient LED, EasyTune, Fast Boot and much more.
Features:
The Gigabyte H510M H is a Micro ATX motherboard designed for use with Intel 10th and 11th generation processors. Here are some of its key features-
Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
Realtek GbE LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Overall, the Gigabyte H510M H is a well-rounded and versatile Micro ATX motherboard that provides the features and performance you need for your next build.
What is the price of Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard in BD 2023?
The latest price of Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh (BD) is 9,300৳ . You can buy the Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
