1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset
Intel Z690 Express Chipset
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Supported CPU
LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Type
DDR5
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Graphics Specifications
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Memory Specifications
Slot
4 x DIMM
Supported Memory
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Connectivity
Audio
2 x audio jacks
HDMI
1 x HDMI port
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Ports
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connector
Wireless Communication Module
WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Warranty Information
Manufacturing Warranty
3 years
Others
Bundled Software
Norton Internet Security (OEM version)>br>
Realtek Gaming LAN Bandwidth Control Utility
Special Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

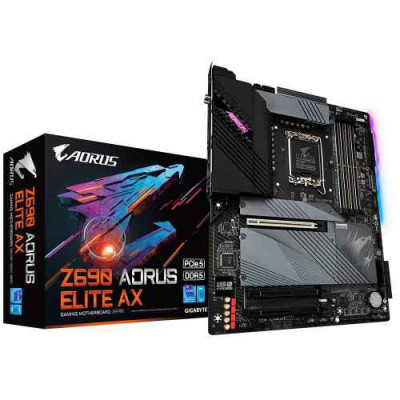

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard
The GIGABYTE Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard is the ultimate gaming platform for your PC. It supports the latest 12th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. It is equipped with GIGABYTE 16 (8+8 phases parallel power design) +1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor, delivering remarkable power and thermal design. Further, it comes with amazing features such as XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing, Fully Covered Thermal Design, AMP-UP Audio, Fast 2.5GbE LAN, 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 and more. The ultimate Alder Lake performance and the latest trends and features make this motherboard a must-have for hardcore gamers. The Motherboard also features the latest DDR5 architecture, XMP 3.0 capability and Unlocked Native DDR5 Voltage, Xtreme Memory Routing, SuperSpeed USB 3.2 Gen2x2 TYPE-C, RGB FUSION 2.0 and more. With 03 years warranty and 7.1 channels High Definition Audio, GIGABYTE Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard is the perfect choice for your gaming needs.
Features
Here are some of the key features of this Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard include:
Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Overall, the Gigabyte Z690 AORUS ELITE AX is a high-performance motherboard that is designed to provide a stable and reliable platform for Intel 12th Gen Core processors, with a range of features and connectivity options that cater to gamers and enthusiasts alike.
What is the price of Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard in BD 2023?
The latest price of Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard in Bangladesh (BD) is 32,000৳ . You can buy the Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
