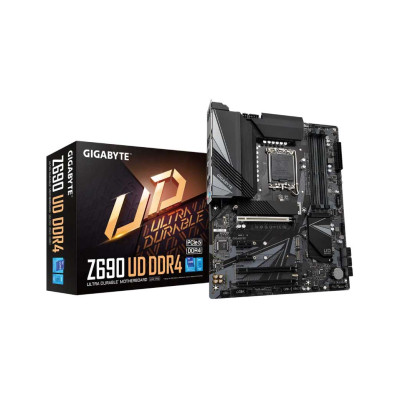

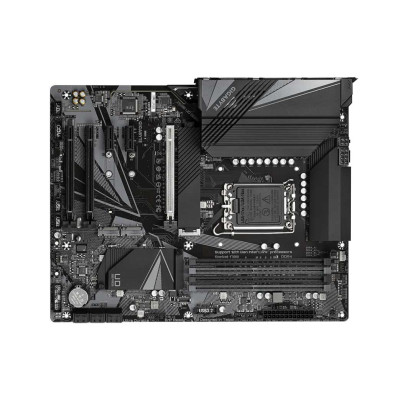

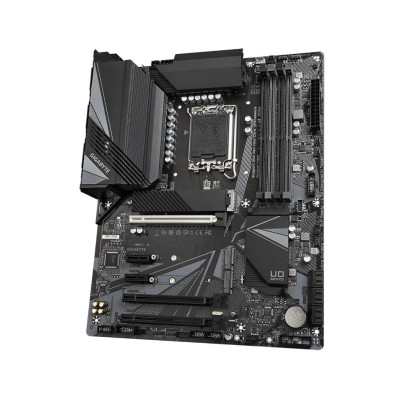

Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard

Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Save: 2000৳
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard
Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard

Key Features

  • LGA1700 socket support 12th Gen Intel Series
  • Dual Channel Non-ECC Unbuffered DDR4,
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage
  • Fast 2.5 GbE LAN with Bandwidth Management
  • Offer Price: 24,900৳
  • Price: 26,900৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: Z690 UD DDR4
  • SKU: 10642
Based on 2 reviews. - Write a review
24,900৳
26,900৳
Ex Tax: 24,900৳
Add to Cart
Buy Now
WishList Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। যোগাযোগের নাম্বারঃ 01841995444

Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel Z690 Express Chipset
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core i9 processors/
Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
Expansion Slots
M.2 Socket 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Graphics Specifications
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory 512MB
Memory Specifications
Maximum Size Up to 128 GB (32 GB single DIMM capacity)
Slot 4 x DIMM
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4
5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/
4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.)
/ 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
memory modules
Type DDR4
Connectivity
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings >
Playback Device to change the default setting first.
Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Audio Jack 1 x front panel audio header
D-Sub 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Display Port 1 x DisplayPort
DVI 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
HDMI 1 x HDMI port
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Q-Flash Plus button
1 x Clear CMOS jumper
LAN Ports Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Manufacturing Warranty 3 years
Others
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard

GIGABYTE Z690 UD DDR4 12th Gen ATX Motherboard is here to provide you with the ultimate gaming experience! It's designed with upgraded power solution, latest storage standards and outstanding connectivity to reach maximum gaming performance. Thanks to the latest PCIe 5.0 technology and onboard low impedance PCB design, it helps to deliver double bandwidth than the current PCIe 4.0 devices to reach the highest speed while maintaining the best signal integrity. In addition, the M.2 Thermal Guard and Smart Fan 6 cooling system ensures that the motherboard works optimally while staying cool and quiet. Finally, with superior audio quality, GIGABYTE Z690 motherboards feature high-end audio capacitors to deliver high resolution and high fidelity audio while utilizing a noise guard to separate the audio sensitive components from potential noise pollution. Enjoy unbeatable storage and connection flexibility along with an ultra-fast data transfer of up to 20Gbps with USB 3.2 Gen 2x2. Make sure your gaming performance is unbeatable with GIGABYTE Z690 UD DDR4 12th Gen ATX Motherboard!

Features:

Here are some features of the Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard-

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Fast 2.5 GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

The Gigabyte Z690 UD is a feature-packed motherboard for high-performance gaming and productivity builds, offering advanced connectivity options and support for the latest Intel Core processors and DDR4 memory.
