8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
m-ATX Form Factor
Supported CPU
Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Expansion Slots
PCI
1 x PCIe 3.0 x16 slot
Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors
Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 2.0 x1 slots
Graphics Specifications
Graphics
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
Max Shared Memory
GraphicssMaximum shared memory of 2048 MB
Memory Specifications
Maximum Size
32GB
Slot
2 x DDR4 memory slots
Supported Memory
Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
Type
Dual channel memory architecture
Connectivity
Audio
Realtek ALC892 Codec
7.1-Channel High Definition Audio
DVI
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
DVI-D
Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
HDMI
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz

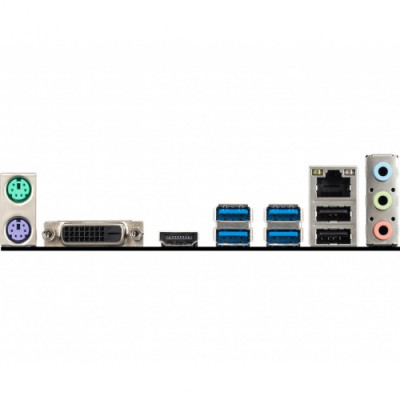

Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
LAN Ports
1 x Realtek 8111H Gigabit LAN controller
Supported Storage
AMD A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1 and RAID 10
TPM (Trusted Platform Module )
1 x TPM module connector
USB
AMD A320 Chipset
6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Warranty Information
Warranty
03 Years Warranty

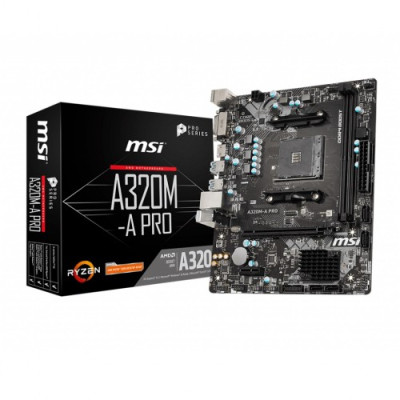

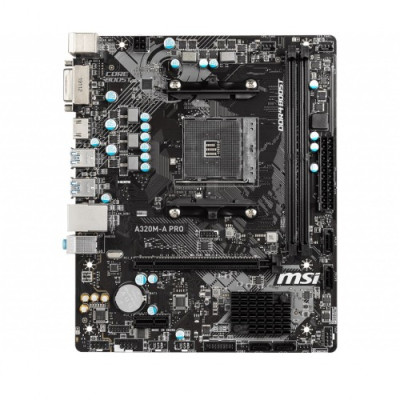

MSI A320M-A Pro AMD Micro-ATX Motherboard
The MSI A320M-A Pro AMD Motherboard – the perfect choice for any pro-level gaming rig. Constructed to the highest quality standards and featuring tons of convenient and smart design elements such as a convenient pin-header keep out zone, friendly SATA & USB locations, our motherboard will allow you to build your gaming rig any way you want. To ensure reliable performance, the MSI A320M-A Pro AMD Motherboard provides excellent power design with solid and heavy heatsinks, as well as an abundance of fan headers with full control to keep your system running cool and efficiently. Our motherboard also features high levels of compatibility due to an extensive Qualified Vendor List (QVL) for memory, and versatile performance-enhancing applications to give you an edge when gaming. Plus, the BIOS is user-friendly for everyone regardless of expertise level. Elevate your listening and connection pleasure with our Audio & LAN technologies and take your gaming to the next level.
Features:
The MSI A320M-A Pro is a budget-oriented AMD motherboard that supports the latest AMD Ryzen processors. It features the A320 chipset, which supports basic system functions and provides basic input/output connectivity. Some of the key features of the MSI A320M-A Pro include:
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3200 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Overall, the MSI A320M-A Pro is a good option for budget-conscious users who are looking for a basic AMD motherboard that provides good performance and essential features for a desktop computer.
What is the price of MSI A320M-A Pro AMD Micro-ATX Motherboard in BD 2023?
The latest price of MSI A320M-A Pro AMD Micro-ATX Motherboard in Bangladesh (BD) is 6,500৳ . You can buy the MSI A320M-A Pro AMD Micro-ATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
