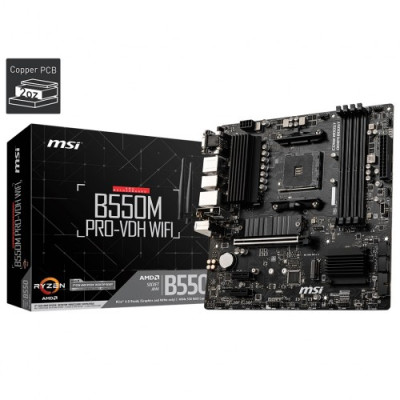

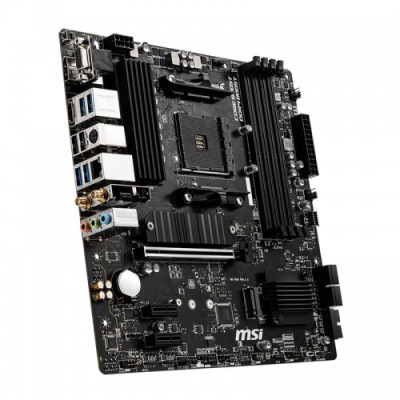

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
Save: 1000৳
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

Key Features

  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • M.2 SHIELD FROZR
  • Supports DDR4 4400+ (OC)
  • PCB with 2OZ Thickened Copper
  • Offer Price: 16,000৳
  • Price: 17,000৳
  • Stock: In Stock
  • Brand: MSI
  • Model: MSI B550M Pro-VDH WiFi
  • SKU: 11780
16,000৳
17,000৳
Ex Tax: 16,000৳
Fax
Memory Dual-channel memory architecture
Main Features
Back Panel Connectors VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
HD Audio Connectors
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.1, SMBIOS 2.8
Multi-language
Chipset AMD B550
Expansion Slots 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots
LED Number 1x 4-pin RGB LED connector
4x EZ Debug LED
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Storage 4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Supported CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Expansion Slots
M.2 Socket 2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
2x PCIe 3.0 x1 slots
Graphics Specifications
Graphics 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
Memory Specifications
Maximum Size 128gb
Slot 4x DDR4 memory slots
Supported Memory 4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Connectivity
Audio Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Bluetooth AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
LAN Ports 1x Realtek® 8111HN Gigabit LAN controller
USB 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Connector
PCI-E 1x PCIe 3.0 x16 slot (From CPU)
2x PCIe 3.0 x1 slots (From AMD B550 chipset)
Physical Dimension
Dimension Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty Information
Warranty 3 Years
Others
Special Features WIRELESS LAN & BLUETOOTH:
Intel Dual Band Wireless-AC 3168-
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

B550M PRO-VDH

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
