| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold and Celeron L3 cache varies with CPU |
|
| Chipset | Intel B660 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0 port | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

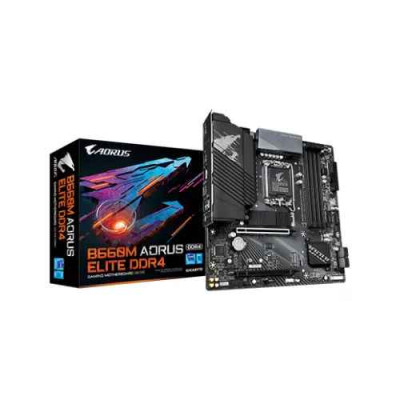

The Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard is a high-performance micro ATX motherboard engineered for gamers, content creators, and power users who demand speed, stability, and customization. Compatible with 14th, 13th, and 12th Gen Intel processors via the LGA1700 socket, this board harnesses the capabilities of the Intel B660 chipset to deliver next-gen performance. With enhanced connectivity options, robust power delivery, DDR4 memory support up to 128GB, and advanced cooling and RGB configurations, it’s an ideal choice for building a future-ready PC in Bangladesh.
Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, allowing seamless performance for gaming, editing, and multitasking.
Built on the reliable Intel B660 Express chipset, ensuring stable performance and efficient data flow for all demanding workloads and gaming sessions.
Equipped with dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, offering high-speed storage options, including Intel Optane Memory compatibility for ultra-fast boot and load times.
Supports high-frequency DDR4 memory modules up to 5333MHz (OC), with a maximum capacity of 128GB, enabling extreme multitasking and overclocking potential.
Features HDMI 2.1 and DisplayPort outputs with support for 4K resolution at 60Hz, making it perfect for content creators and high-definition multimedia usage.
Includes a PCIe 4.0 x16 slot for modern GPUs and an additional PCIe 3.0 x4 slot, ensuring future upgrade flexibility for graphic-intensive tasks.
Powered by Realtek High Definition Audio Codec supporting up to 7.1-channel sound output, delivering immersive sound quality for gaming and media consumption.
Features a Realtek 2.5GbE LAN chip for ultra-fast and stable wired internet connectivity, minimizing latency and ensuring seamless online gameplay.
Multiple USB 3.2 Gen 2 and USB-C ports, both on the rear panel and internally, ensure maximum compatibility with modern peripherals and high-speed data transfer.
Fully supports RGB Fusion with addressable LED headers, APP Center utilities like EasyTune and Smart Backup, giving users total control over performance and aesthetics.
Looking to build a powerful, reliable PC in Bangladesh? Buy the Gigabyte B660M AORUS ELITE DDR4 motherboard from Potaka IT and experience unbeatable value and authentic components. We offer competitive prices, expert support, and fast nationwide delivery so you can build your dream system with peace of mind. Whether you're a gamer, creator, or tech enthusiast, Potaka IT is your trusted source for genuine PC hardware in BD.
The latest price of Gigabyte B660M AORUS ELITE Motherboard in Bangladesh is 20,300৳. You can buy the Gigabyte B660M AORUS ELITE Motherboard at best price from our website or visit any of our showrooms.
