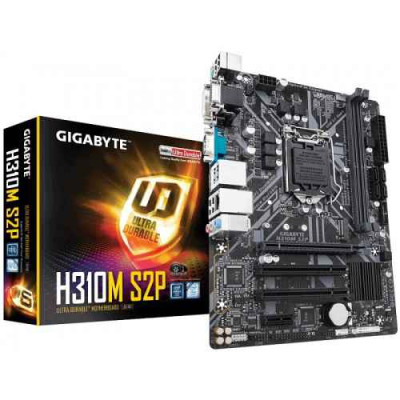

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Save: 200৳
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Key Features

  • Chipset: Intel H310 Express
  • Intel Socket 1151 for 8th Gen Core Processors
  • 2 x DIMM, Max. 32GB DDR4
  • 2 x PCIe & 2 x PCI slots
  • Offer Price: 7,300৳
  • Price: 7,500৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: H310M S2P
  • SKU: 10940
7,300৳
7,500৳
Ex Tax: 7,300৳
Main Features
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel® H310 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm
Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support L3 cache varies with CPU
Type DDR4
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
Graphics Specifications
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory 1 GB
Memory Specifications
Slot 2 x DIMM sockets
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Connectivity
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
HDMI 1 x HDMI port
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
LAN Ports Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
USB 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Warranty Information
Manufacturing Warranty 03 Years

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

This compact, powerful Gigabyte H310M S2P 8th Gen Micro ATX Motherboard offers fast speeds and increases capabilities for powerful computing. Enjoy convenience with four USB 3.1 Gen 1 ports and six USB 2.0/1.1 ports and ensure security with a trusted platform module (TPM) header and dual BIOS. With a BIOS 2x 128 Mbit flash and AMI UEFI BIOS support featuring 2.7 DMI and WfM 2.0, SM BIOS 2.7, ACPI 5.0 Chipset, you can access the Intel® H310 Express Chipset and stay up to date. It's Compatible with 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors and supports a DDR4 form factor. Another plus, it's Micro ATX Form Factor at 24.4cm x 18.5cm is perfect for any setup. Finally, you ensure your product won't give you any trouble with a 03 Years Manufacturing Warranty.

Features:

The Gigabyte H310M S2P is an 8th generation micro ATX motherboard that features the following-

  • Chipset: Intel H310 Express chipset
  • Socket: LGA 1151 socket for 8th and 9th generation Intel Core processors
  • Memory Support: 2 x DIMM, dual channel DDR4 2666 MHz, up to 32GB
  • Expansion Slots: 1 x PCI Express x16 slot and 1 x PCI Express x1 slot
  • Storage: 4 x SATA 6Gb/s connectors and 1 x M.2 connector
  • Audio: Realtek ALC887 codec, 2/4/5.1/7.1-channel
  • Networking: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Power Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

The Gigabyte H310M S2P is a compact and feature-rich motherboard that provides a solid foundation for building a small form factor system with 8th and 9th generation Intel Core processors.

Write a review

Please login or register to review

Find Your Perfect Match: Product Comparison Table

Product Gigabyte H310M H 8th Gen Micro ATX Motherboard Gigabyte H310M S2H 9th Gen Micro ATX Motherboard Gigabyte H410M S2H 10th Gen Micro ATX Ultra Durable Motherboard Gigabyte H410M H V2 10th & 11th Gen Micro ATX Ultra Durable Motherboard
Image Gigabyte H310M H 8th Gen Micro ATX Motherboard Gigabyte H310M S2H 9th Gen Micro ATX Motherboard Gigabyte H410M S2H 10th Gen Micro ATX Ultra Durable Motherboard Gigabyte H410M H V2 10th & 11th Gen Micro ATX Ultra Durable Motherboard
Price 7,490৳ 6,800৳ 7,700৳ 6,900৳ 8,360৳ 7,800৳ 8,800৳ 8,300৳
Model H310M H H310M S2H H410M S2H Gigabyte H410M H V2
Brand Gigabyte Gigabyte Gigabyte Gigabyte
Availability In Stock Out Of Stock Out Of Stock In Stock
Rating
Based on 3 reviews.

Based on 3 reviews.

Based on 3 reviews.

Based on 2 reviews.
Weight 0.00kg 0.00kg 0.00kg 0.00kg
Dimensions (L x W x H) 0.00cm x 0.00cm x 0.00cm 0.00cm x 0.00cm x 0.00cm 0.00cm x 0.00cm x 0.00cm 0.00cm x 0.00cm x 0.00cm

View all

What is the best price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh 2024?

The best price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh is 7,300৳ . You can buy the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
